99 0436 282 05 | binder

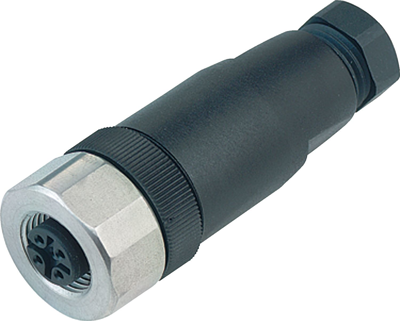

Name: Jack, M12, 5 pole, screw connection, screw locking, straight, 99 0436 282 05
Brand: binder
SKU: 66P3363
Price: 26.30 EUR
Availability: InStock

Jack, M12, 5 pole, screw connection, screw locking, straight, 99 0436 282 05

Order No.: 66P3363

EAN: 4099879104373

MPN:

99 0436 282 05

Series: 713

Image may differ

Key Specification:

Version jack

Pin number 5 pole

Thread size M12

Coding A

Type of locking screw locking

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

26.2990 € *

Available: 48 pcs.

Leadtime: 4 Weeks **

Total Price:

26.30 € *

Price list

Quantity

Price per unit*

1 pcs.

26.2990 €

10 pcs.

23.1336 €

50 pcs.

21.5628 €

150 pcs.

20.6108 €

500 pcs.

19.5636 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Female cable connector, 99-0436-282-05, Franz Binder

M12-A Female connector, poles 5, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL, PG 9

Technical specifications

	Version	jack
	Thread size	M12
	Coding	A
	Contact connection	screw connection
	contact surface	gold-plated
	Assembly	cable assembly
	Orientation	straight
	Pin number	5 pole
	Degree of protection (IP)	IP67
	Type of locking	screw locking

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85369010

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead
