99 0430 82 04 | binder

Jack, M12, 4 pole, screw connection, screw locking, straight, 99 0430 82 04

Order No.: 70P1016
EAN: 4099891674724
MPN:
99 0430 82 04
Series: 713

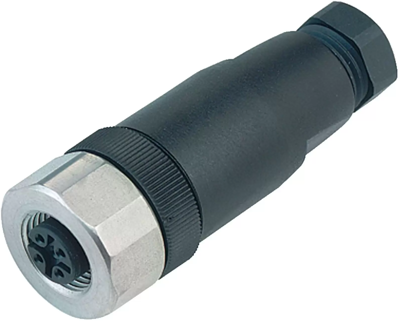

99 0430 82 04 binder Sensor-Actuator Connectors Image 1
99 0430 82 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.5763 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
17.58 € *
Price list
Quantity
Price per unit*
1 pcs.
17.5763 €
10 pcs.
16.3506 €
50 pcs.
15.2082 €
100 pcs.
14.1491 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99 0430 82 04, binder

M12-A Female cable connector, Contacts: 4, 4.0-6.0 mm, unshielded, screw clamp, IP67, UL.

Technical specifications
Filter Property Value
Thread size M12
Additional parts equipped
Pin number 4 pole
Orientation straight
Degree of protection (IP) IP67
Type of locking screw locking
Assembly cable assembly
Contact connection screw connection
contact surface gold-plated
Product type jack
Coding A
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
