86 6919 0002 30704 | binder

Panel plug, M8, 4 pole, solder connection, snap-in/screw locking, straight, 86 6919 0002 30704

Order No.: 70P1242
EAN: 4099891676018
MPN:
86 6919 0002 30704
Series: 718

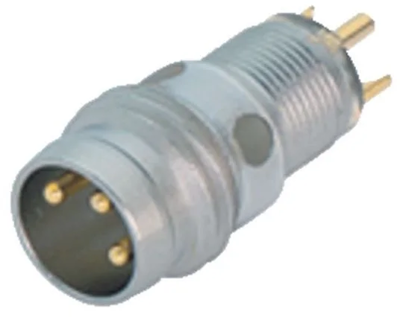

86 6919 0002 30704 binder Sensor-Actuator Connectors Image 1
86 6919 0002 30704 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.8064 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.81 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8064 €
10 pcs.
7.0329 €
50 pcs.
6.1880 €
100 pcs.
5.5573 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male receptacle, 86 6919 0002 30704, binder

M8 Male receptacle, Contacts: 4, unshielded, solder, IP65.

Technical specifications
Type of locking snap-in/screw locking
contact surface gold-plated
Degree of protection (IP) IP65
Contact connection solder connection
Pin number 4 pole
Version panel plug
Additional parts equipped
Orientation straight
Thread size M8
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
