86 4332 1002 00004 | binder
Panel socket, M12, 4 pole, solder connection, screw locking, straight, 86 4332 1002 00004
Unit Price (€ / pc.)
6.7592 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
6.76 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7592 €
10 pcs.
6.0809 €
50 pcs.
5.3431 €
100 pcs.
4.8195 €
*incl. VAT plus shipping costs
**Subject to prior sale

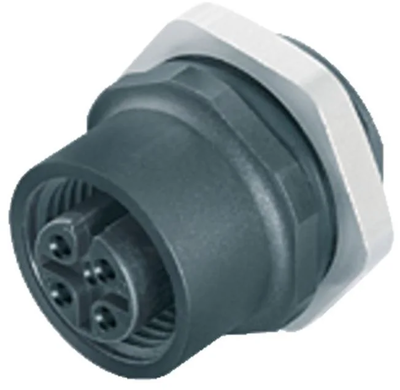

Female panel mount connector, 86 4332 1002 00004, binder
M12-A Female panel mount connector, Contacts: 4, unshielded, solder, IP67, UL, M16x1.5.
Technical specifications
| Version | panel socket | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
