86 0232 0002 00005 | binder

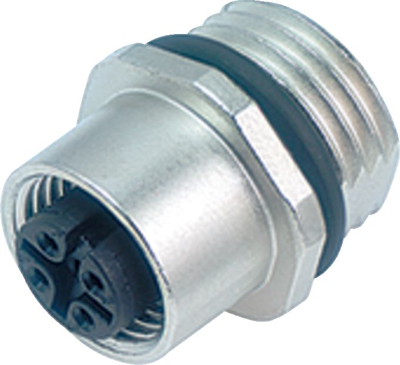

Panel socket, M12, 5 pole, solder connection, screw locking, straight, 86 0232 0002 00005
Unit Price (€ / pc.)
9.7699 € *
Available: 22 pcs.
Total Price:
9.77 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7699 €
10 pcs.
8.7584 €
50 pcs.
8.1991 €
100 pcs.
7.6993 €
*incl. VAT plus shipping costs
Subject to prior sale
Female panel mount connector, 86-0232-0002-00005, Franz Binder
M12-A Female connector, poles 5, unshielded, solder, IP68, UL, M16x1.5
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Degree of protection (IP) | IP68 |
Download
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
