86 0131 0002 00005 | binder

Panel plug, PG9, 5 pole, solder connection, screw locking, straight, 86 0131 0002 00005

Order No.: 66P2890
EAN: 4099889700213
MPN:
86 0131 0002 00005
Series: 763

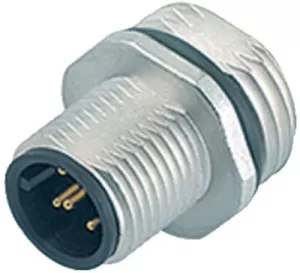

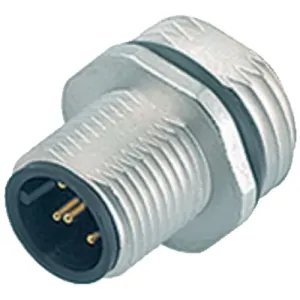

86 0131 0002 00005 binder Sensor-Actuator Connectors Image 1
86 0131 0002 00005 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.7818 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.78 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7818 €
10 pcs.
8.8060 €
50 pcs.
8.0920 €
100 pcs.
7.1281 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor-actuator connector, 86-0131-0002-00005, BINDER

M12-A Male panel mount connector, Contacts: 5, unshielded, solder, IP68, UL, PG 9.

Features

  • Contact material: CuZn
  • Degree of protection: IP68
  • Pollution degree: 3
  • Overvoltage category: II
Technical specifications
Type of locking screw locking
contact surface gold-plated
Degree of protection (IP) IP68
Assembly panel mounting
Contact connection solder connection
Pin number 5 pole
Version panel plug
Orientation straight
Thread size PG9
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
