76 2832 0111 00012-0200 | binder

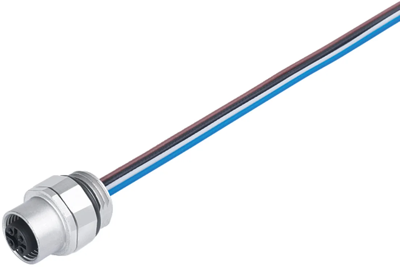

Panel socket, M12, 12 pole, strand connection, screw locking, straight, 76 2832 0111 00012-0200
Unit Price (€ / pc.)
46.6361 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
46.64 € *
Price list
Quantity
Price per unit*
1 pcs.
46.6361 €
10 pcs.
44.3156 €
25 pcs.
41.6381 €
50 pcs.
38.7226 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 76 2832 0111 00012-0200, binder

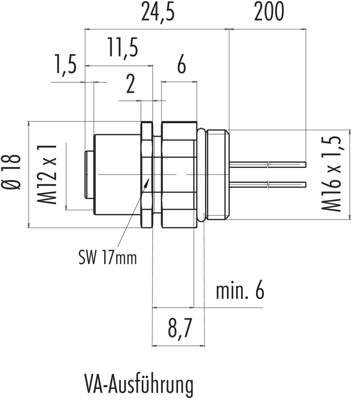

M12-A Female panel mount connector, Contacts: 12, unshielded, single wires, IP68/IP69K, UL, M16x1.5.
Technical specifications
| Pin number | 12 pole | |
| Degree of protection (IP) | IP68/IP69K | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Version | cable 0.2 m | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
