09 3403 86 03 | binder
Panel plug, M8, 3 pole, strand connection, screw locking, straight, 09 3403 86 03
Unit Price (€ / pc.)
9.5914 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
9.59 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5914 €
10 pcs.
8.6394 €
50 pcs.
7.9373 €
100 pcs.
6.9853 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 09-3403-86-03, BINDER

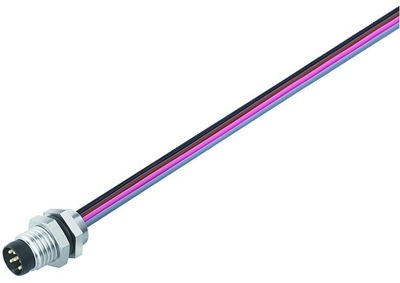

M8 Male panel mount connector, Contacts: 3, unshielded, single wires, IP67, PUR black, front mounting.
Features
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.2 m | |
| Pin number | 3 pole | |
| Thread size | M8 | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
