09 3403 00 03 | binder

Panel plug, M8, 3 pole, strand connection, screw locking, straight, 09 3403 00 03

Order No.: 66P1110
EAN: 4099889699548
MPN:
09 3403 00 03
Series: 718

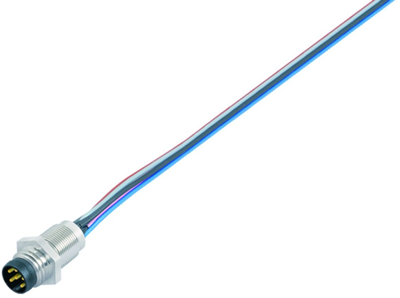

09 3403 00 03 binder Sensor-Actuator Connectors Image 1
09 3403 00 03 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.0206 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
8.02 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0206 €
10 pcs.
7.2352 €
50 pcs.
6.3546 €
100 pcs.
5.7239 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 09-3403-00-03, BINDER

M8 Male panel mount connector, Contacts: 3, unshielded, single wires, IP67/IP69K, UL, M8x0.5.

Features

  • Contact material: CuZn
  • Pollution degree: 3
  • Overvoltage category: I
Technical specifications
Filter Property Value
Pin number 3 pole
Degree of protection (IP) IP67/IP69K
Assembly panel mounting
Orientation straight
Version cable 0.2 m
Product type panel plug
Additional parts equipped
Type of locking screw locking
Contact connection strand connection
Thread size M8
contact surface gold-plated
Compliance
Property Value
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
