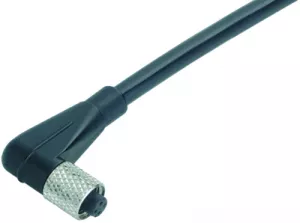

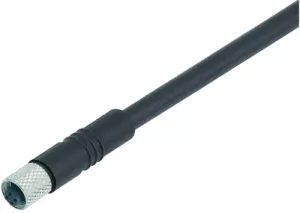

Single-ended cord set for sensors, M 5, type Binder 707.
Flanged cable plug connector with screw lock; Male contact: copper zinc. Female contact: copper tin. Contact finish: gold-plated. Cable housing. Flange body: PA 66. Flange housing: nickel-plated brass. Rated voltage: 125 V. Rated current: 1.0 A with 0.14 mm², 2.0 A with 0.25 mm². Test surge voltage: 1750 V. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Insertion/removal cycles: 500. Operating temperatures: (cable moving) - 5.0 to +80 °C, (cable static) - 15 to +80 °C with 0.14 mm², - 25 to +80 °C with 0.25 mm².

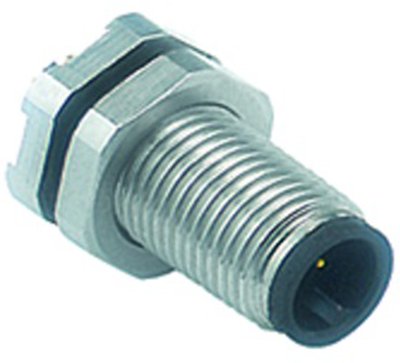

Male panel mount connector with dip soldering contacts, type 707.
Technical attributes (type, number of poles): 09-3111-81-04, 4-pole
Version | panel plug | |
Additional parts | equipped | |
Thread size | M5 | |
Contact connection | THT | |
contact surface | gold-plated | |
Assembly | panel mounting | |
Orientation | straight | |
Pin number | 4 pole | |
Degree of protection (IP) | IP67 | |
Type of locking | Screw locking |
Country of origin | DE |
Customs tariff number | 85444290 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead |
Order No.:
67F5544
Manufacturer SKU:
79 3108 52 04
Order No.:
67F5546
Manufacturer SKU:
79 3108 32 04
Order No.:
67F5566
Manufacturer SKU:
79 3110 32 04
Order No.:
67F5554
Manufacturer SKU:
79 3108 35 04
Order No.:
67F5552
Manufacturer SKU:
79 3108 55 04
Order No.:
67F5564
Manufacturer SKU:
79 3110 52 04
Order No.:
67F5572
Manufacturer SKU:
79 3110 55 04
Order No.:
67F5574
Manufacturer SKU:
79 3110 35 04
