09 0687 700 03 | binder

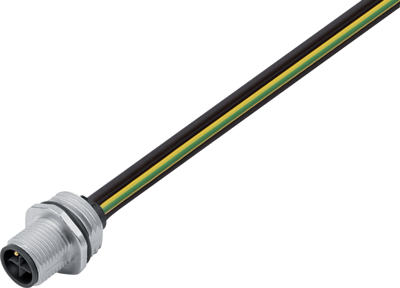

Panel plug, M12, 2 pole + PE, strand connection, screw locking, straight, 09 0687 700 03
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
15.2320 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
15.23 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2320 €
10 pcs.
13.3994 €
50 pcs.
12.4831 €
150 pcs.
11.9357 €
500 pcs.
11.3288 €
*incl. VAT plus shipping costs
Subject to prior sale
Male panel mount connector, 09-0687-700-03, Franz Binder
M12-S Male connector, poles 2+PE, unshielded, single wires, IP68, UL, M16x1.5

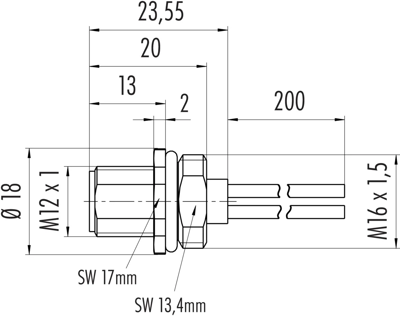

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.2 m | |
| Pin number | 2 pole + PE | |
| Thread size | M12 | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | panel mounting | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
