77 3530 3529 50708-0100 | binder

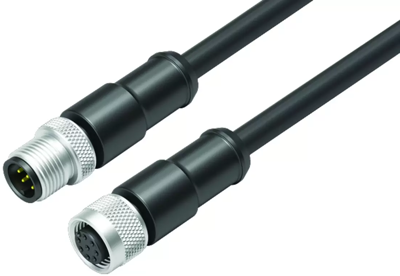

Sensor actuator cable, Cable plug, straight to cable socket, straight, 8 pole, 1 m, PUR, black, 2 A, 77 3530 3529 50708-0100
Unit Price (€ / pc.)
35.5691 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
35.57 € *
Price list
Quantity
Price per unit*
1 pcs.
35.5691 €
10 pcs.
33.4271 €
25 pcs.
31.0828 €
50 pcs.
28.9051 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 77 3530 3529 50708-0100, binder
M12-A Connecting cable male cable connector - female cable connector, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, black, 8 x 0.25 mm², 1 m.
Technical specifications
| Connection (1) | Cable plug, straight | |
| Connection (2) | cable socket, straight | |
| Colour | black | |
| Cable length | 1 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 30 V | |
| Rated current | 2 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
