77 3530 3529 50704-0100 | binder

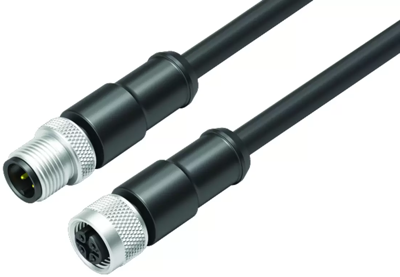

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, straight, 4 pole, 1 m, PUR, black, 4 A, 77 3530 3529 50704-0100
Unit Price (€ / pc.)
29.7976 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
29.80 € *
Price list
Quantity
Price per unit*
1 pcs.
29.7976 €
10 pcs.
28.0007 €
25 pcs.
26.3228 €
50 pcs.
24.7520 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 77 3530 3529 50704-0100, binder
M12-A Connecting cable male cable connector - female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL listed, PUR, black, 4 x 0.34 mm², 1 m.
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | M12-cable socket, straight | |
| Pin number | 4 pole | |
| Cable length | 1 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
