99 9210 070 04 | binder
Jack, 4 pole, solder connection, snap lock, straight, 99 9210 070 04
Unit Price (€ / pc.)
9.1630 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
9.16 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1630 €
10 pcs.
8.2467 €
50 pcs.
7.5803 €
100 pcs.
6.6759 €
*incl. VAT plus shipping costs
**Subject to prior sale

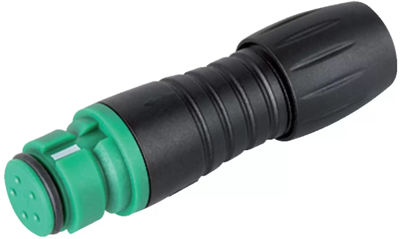

Female cable connector, 99 9210 070 04, binder
Snap-In IP67 Female cable connector, Contacts: 4, 3.5-5.0 mm, unshielded, solder, IP67.
Technical specifications
| Version | jack | |
| Additional parts | equipped | |
| Shell Material | polyamide | |
| Cable diameter | 3.5 to 5 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.25 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Type of locking | snap lock |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
