99 9207 060 03 | binder
Panel plug, 3 pole, solder connection, snap lock, straight, 99 9207 060 03
Unit Price (€ / pc.)
5.8429 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
5.84 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8429 €
10 pcs.
5.2479 €
50 pcs.
4.6291 €
100 pcs.
4.0222 €
*incl. VAT plus shipping costs
Subject to prior sale

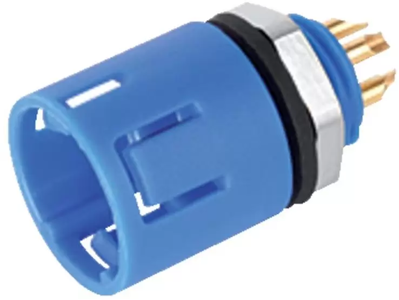

Male panel mount connector, 99 9207 060 03, binder
Snap-In IP67 (subminiature) Male panel mount connector, Contacts: 3, unshielded, solder, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Type of locking | snap lock | |
| Pin number | 3 pole | |
| contact surface | gold-plated | |
| Cable cross-section | 0.25 mm² | |
| Shell Material | PA | |
| Contact connection | solder connection | |
| Assembly | panel mounting | |
| Version | panel plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
