99 9207 050 03 | binder
Panel plug, 3 pole, solder connection, snap lock, straight, 99 9207 050 03
Unit Price (€ / pc.)
5.6168 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
5.62 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6168 €
10 pcs.
5.0456 €
50 pcs.
4.4506 €
100 pcs.
3.8675 €
*incl. VAT plus shipping costs
**Subject to prior sale

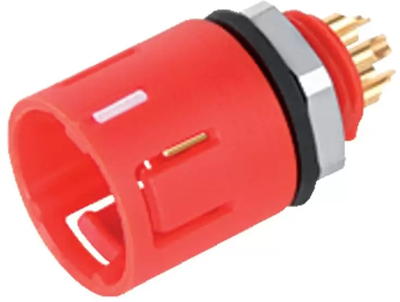

Male panel mount connector, 99 9207 050 03, binder
Snap-In IP67 (subminiature) Male panel mount connector, Contacts: 3, unshielded, solder, IP67.
Technical specifications
| Version | panel plug | |
| Additional parts | equipped | |
| Shell Material | polyamide | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.25 mm² | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Type of locking | snap lock |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
