99 9176 02 08 | binder
Miniature connector, Snap In, unshielded, 0,25 mm², AWG 24, female angled, 8 pole
Unit Price (€ / pc.)
15.3867 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
15.39 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3867 €
10 pcs.
14.0063 €
50 pcs.
12.3165 €
*incl. VAT plus shipping costs
**Subject to prior sale

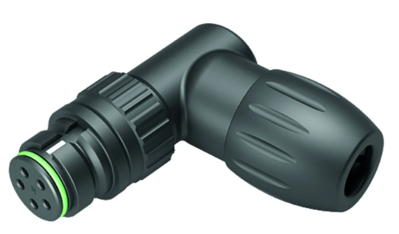

Female angled connector, 99 9176 02 08, binder
Snap-In Female angled connector, Contacts: 8, 6.0 - 8.0 mm, unshielded, solder, IP67.
Technical specifications
| Version | angle coupling | |
| Shell Material | polyamide | |
| Cable diameter | 6 to 8 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.25 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 8 pole | |
| Type of locking | snap-in |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
