99 9164 03 05 | binder

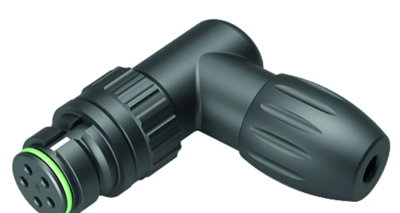

Miniature connector, Snap In, unshielded, 0,75 mm², AWG 18, female angled, 5 pole
Unit Price (€ / pc.)
13.7683 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
13.77 € *
Price list
Quantity
Price per unit*
1 pcs.
13.7683 €
10 pcs.
12.5426 €
50 pcs.
11.0313 €
*incl. VAT plus shipping costs
Subject to prior sale

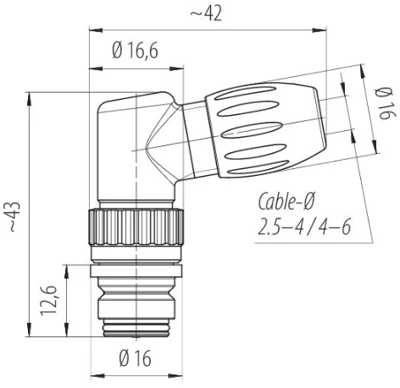

Female angled connector, 99 9164 03 05, binder
Snap-In Female angled connector, Contacts: 5, 2.5 - 4.0 mm, unshielded, solder, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Shell Material | PA | |
| Cable diameter | 2.5 to 4 mm | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Version | angle coupling | |
| Type of locking | snap-in | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
