99 9134 452 12 | binder
Jack, 12 pole, solder connection, snap lock, straight, 99 9134 452 12
Unit Price (€ / pc.)
17.1955 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
17.20 € *
Price list
Quantity
Price per unit*
1 pcs.
17.1955 €
10 pcs.
15.9936 €
50 pcs.
14.8750 €
100 pcs.
13.8397 €
*incl. VAT plus shipping costs
**Subject to prior sale

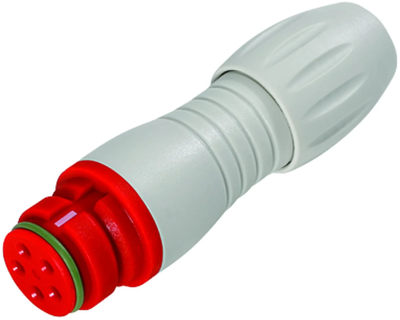

Female cable connector, 99 9134 452 12, binder
Snap-In IP67 (miniature) Female cable connector, Contacts: 12, 6.0-8.0 mm, unshielded, solder, IP67.
Technical specifications
| Version | jack | |
| Additional parts | equipped | |
| Shell Material | polyamide | |
| Cable diameter | 6 to 8 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.25 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Type of locking | snap lock |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
