99 5452 00 14 | binder
Jack, 14 pole, solder connection, screw locking, straight, 99 5452 00 14
Unit Price (€ / pc.)
22.4434 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
22.44 € *
Price list
Quantity
Price per unit*
1 pcs.
22.4434 €
10 pcs.
21.0987 €
50 pcs.
19.8254 €
100 pcs.
18.6354 €
*incl. VAT plus shipping costs
Subject to prior sale

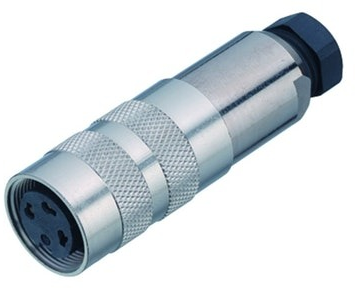

Miniature connector, 99-5452-00-14, BINDER

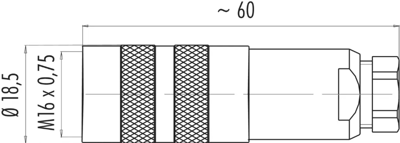

M16 IP67 Female cable connector, Contacts: 14, 4.0-6.0 mm, shieldable, solder, IP67, UL.
Features
- Contact material: CuSn (Bronze)
- Degree of protection: IP67
- Pollution degree: 1
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Version | jack | |
| Contact connection | solder connection | |
| Pin number | 14 pole |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
