99 5172 09 08 | binder
Jack, 8 pole, solder connection, screw locking, straight, 99 5172 09 08
Unit Price (€ / pc.)
21.0630 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
21.06 € *
Price list
Quantity
Price per unit*
1 pcs.
21.0630 €
10 pcs.
19.7897 €
50 pcs.
18.5997 €
100 pcs.
17.4930 €
*incl. VAT plus shipping costs
**Subject to prior sale

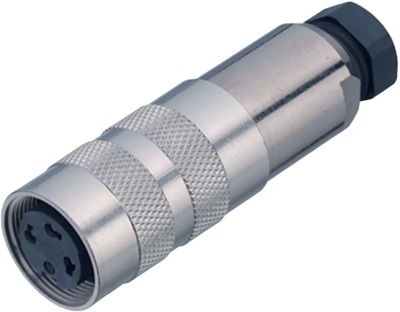

Female cable connector, 99 5172 09 08, binder

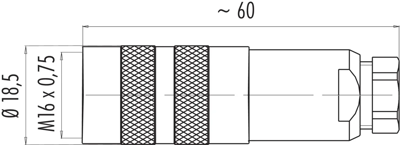

M16 IP67 Female cable connector, Contacts: 8 DIN, 4.0-6.0 mm, shieldable, solder, IP68, UL.
Technical specifications
| Version | Kupplung | |
| Cable cross-section | 0,75 mm² | |
| Pin number | 8-polig | |
| Orientation | gerade | |
| Contact connection | Lötanschluss | |
| Type of locking | Schraubverriegelung | |
| Cable diameter | 4 bis 6 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | vergoldet | |
| Shell Material | CuZn |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
