99 5171 19 08 | binder
Plug, 8 pole, solder connection, screw locking, straight, 99 5171 19 08
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
35.7952 € *
Available: 9 pcs.
Available in 5 Days: 120 pcs. - if ordered today
Total Price:
35.80 € *
Price list
Quantity
Price per unit*
1 pcs.
35.7952 €
5 pcs.
33.6413 €
15 pcs.
32.3561 €
50 pcs.
30.9400 €
150 pcs.
29.6429 €
*incl. VAT plus shipping costs
Subject to prior sale

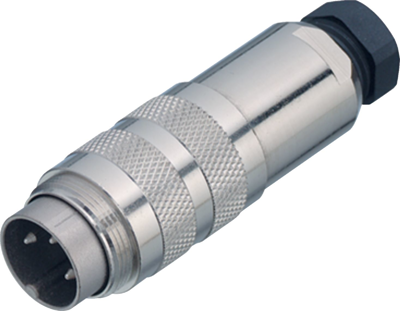

Male cable connector, 99-5171-19-08, Franz Binder
M16 IP67 Male connector, poles 8 DIN, 4.0-6.0 mm, shieldable, solder, IP68, UL, AISG compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 8 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 4 to 6 mm | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Shell Material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
