99 5113 19 05 | binder
Plug, 5 pole, solder connection, screw locking, straight, 99 5113 19 05
Unit Price (€ / pc.)
22.9432 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
22.94 € *
Price list
Quantity
Price per unit*
1 pcs.
22.9432 €
10 pcs.
21.3367 €
25 pcs.
19.6231 €
50 pcs.
17.8619 €
*incl. VAT plus shipping costs
Subject to prior sale

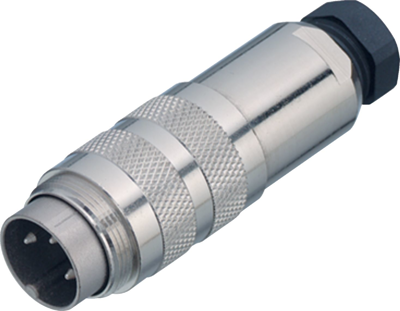

Male cable connector, 99-5113-19-05, Franz Binder
M16 IP67 Male connector, poles 5, 4.0-6.0 mm, shieldable, solder, IP67, UL
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 5 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 4 to 6 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
