99 4613 00 09 | binder

Plug, 9 pole, solder connection, screw locking, straight, 99 4613 00 09

Order No.: 67F185
EAN: 4099889702163
MPN:
99 4613 00 09
Series: 623

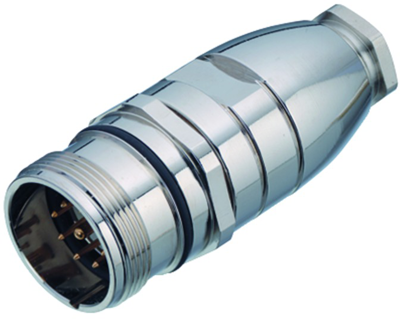

99 4613 00 09 binder Other Circular Connectors Image 1

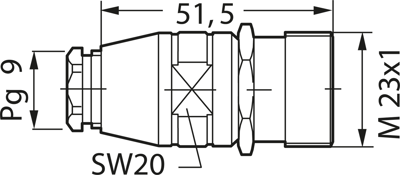

99 4613 00 09 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.7758 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
24.78 € *
Price list
Quantity
Price per unit*
1 pcs.
24.7758 €
10 pcs.
23.2764 €
50 pcs.
21.8722 €
100 pcs.
20.5632 €
*incl. VAT plus shipping costs
Subject to prior sale

Industrial circular connector, IP 67, type Binder 623.

With M 23 thread locking and Pg 9 cable bushing; Contacts: CuZn. Contact diameter: 2.0 mm. Finish: gold-plated. Cable connection: solder contacts for 9 poles max. 1.5 mm² (2.0-mm diameter 2.5 mm²). Contact carrier: PET to UL 94 V-0. Cable housing: nickel-plated brass. Flanged housing: zinc die-cast, nickel-plated. Cable outlet: 6.0 to 10 mm. Degree of protection in mated state (IEC 60529): IP 67. Rated voltage: 250 V. Test voltage: 2950 V. Rated current (40 °C): 8.0 A (for 2.0-mm diameter 20 A). Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Operating temperatures: - 40 to +125 °C.

Coupling plugs, non-shielded, type 623.

With fixed thread for screw lock..

Technical attributes (type, number of poles): 99-4613-00-09, 9-pole

Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection solder connection
Pin number 9 pole
Version plug
Additional parts equipped
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
