99 4629 00 16 | binder

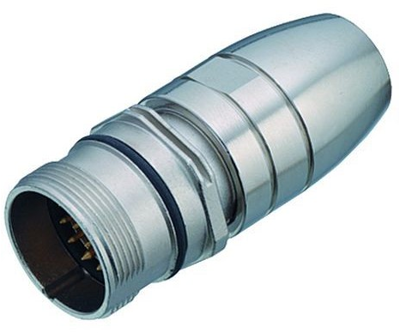

Name: Plug, 16 pole, solder connection, screw locking, straight, 99 4629 00 16
Brand: binder
SKU: 66P4279
Price: 30.30 EUR
Availability: OutOfStock

Plug, 16 pole, solder connection, screw locking, straight, 99 4629 00 16

Order No.: 66P4279

EAN: 4099889701630

MPN:

99 4629 00 16

Series: 623

Image may differ

Key Specification:

Version plug

Pin number 16 pole

Orientation straight

Contact connection solder connection

Show 6 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

30.2974 € *

Available: 0 pcs.

Leadtime: 3 Weeks **

Add to Cart

Total Price:

30.30 € *

Price list

Quantity

Price per unit*

1 pcs.

30.2974 €

10 pcs.

28.4767 €

25 pcs.

26.4894 €

50 pcs.

24.6211 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Power connector, 99-4629-00-16, BINDER

M23 Coupling plug, Contacts: 16, 6.0-10.0 mm, shieldable, solder, IP67.

Features

Contact material: CuZn
Pollution degree: 3
Overvoltage category: I

Technical specifications

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead
