99 2445 73 05 | binder
Angle plug, 4 pole + PE, screw connection, screw locking, angled, 99 2445 73 05
Unit Price (€ / pc.)
33.0463 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
33.05 € *
Price list
Quantity
Price per unit*
1 pcs.
33.0463 €
10 pcs.
31.0709 €
25 pcs.
28.8932 €
50 pcs.
26.8821 €
*incl. VAT plus shipping costs
Subject to prior sale

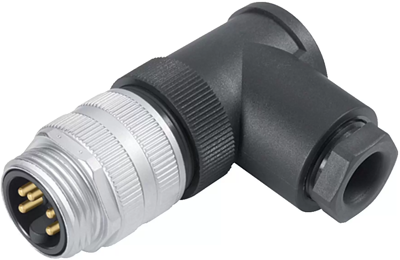

Male angled connector, 99 2445 73 05, binder

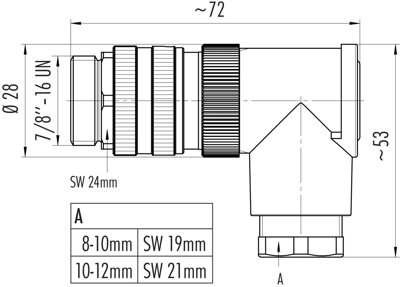

7/8" Male angled connector, Contacts: 4+PE, 10.0-12.0 mm, unshielded, screw clamp, IP67, UL, VDE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | angle plug | |
| Cable cross-section | 2.5 mm² | |
| Pin number | 4 pole + PE | |
| Orientation | angled | |
| Contact connection | screw connection | |
| Type of locking | screw locking | |
| Cable diameter | 10 to 12 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PBT |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
