99 2443 72 04 | binder
Angle plug, 3 pole + PE, screw connection, screw locking, angled, 99 2443 72 04
Unit Price (€ / pc.)
24.1689 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
24.17 € *
Price list
Quantity
Price per unit*
1 pcs.
24.1689 €
10 pcs.
22.7171 €
25 pcs.
21.3605 €
50 pcs.
20.0753 €
*incl. VAT plus shipping costs
**Subject to prior sale

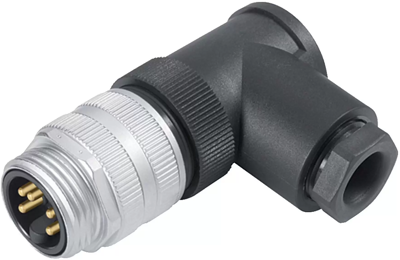

Male angled connector, 99 2443 72 04, binder

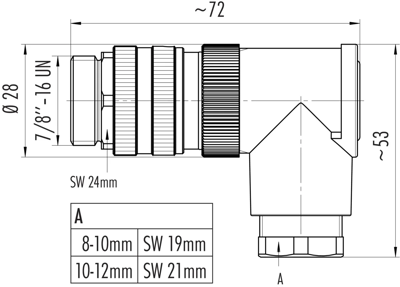

7/8" Male angled connector, Contacts: 3+PE, 10.0-12.0 mm, unshielded, screw clamp, IP67, UL, VDE.
Technical specifications
| Version | angle plug | |
| Additional parts | equipped | |
| Shell Material | PBT | |
| Cable diameter | 10 to 12 mm | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Cable cross-section | 1.5 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 3 pole + PE | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
