99 2441 72 03 | binder

Angle plug, 2 pole + PE, screw connection, screw locking, angled, 99 2441 72 03

Order No.: 70P2053
EAN: 4099891704599
MPN:
99 2441 72 03
Series: 820

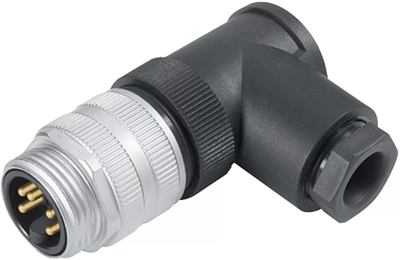

99 2441 72 03 binder Other Circular Connectors Image 1
99 2441 72 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.9194 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
22.92 € *
Price list
Quantity
Price per unit*
1 pcs.
22.9194 €
10 pcs.
21.5509 €
50 pcs.
20.2538 €
100 pcs.
19.0400 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male angled connector, 99 2441 72 03, binder

7/8" Male angled connector, Contacts: 2+PE, 10.0-12.0 mm, unshielded, screw clamp, IP67, UL, VDE.

Technical specifications
Version angle plug
Cable cross-section 1.5 mm²
Pin number 2 pole + PE
Orientation angled
Contact connection screw connection
Type of locking screw locking
Cable diameter 10 to 12 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PBT
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
