99 2041 20 19 | binder

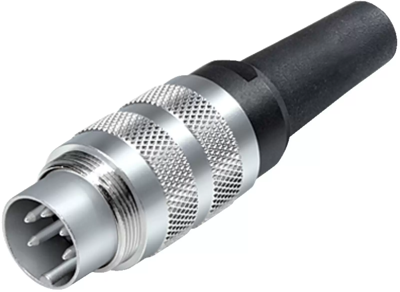

Name: Plug, 19 pole, solder connection, screw locking, straight, 99 2041 20 19
Brand: binder
SKU: 70P0483
Price: 24.69 EUR
Availability: OutOfStock

Plug, 19 pole, solder connection, screw locking, straight, 99 2041 20 19

Order No.: 70P0483

EAN: 4099891697020

MPN:

99 2041 20 19

Series: 581

Image may differ

Key Specification:

Version plug

Cable cross-section 0.25 mm²

Pin number 19 pole

Orientation straight

Contact connection solder connection

Show 13 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

24.6925 € *

Available: 0 pcs.

Leadtime: 2 Weeks **

Add to Cart

Total Price:

24.69 € *

Price list

Quantity

Price per unit*

1 pcs.

24.6925 €

10 pcs.

23.1931 €

25 pcs.

21.8127 €

50 pcs.

20.5037 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Male cable connector, 99 2041 20 19, binder

M16 IP40 Male cable connector, Contacts: 19, 6.0-8.0 mm, shieldable, solder, IP40.

Download

Declaration of Conformity - EN Declaration of Conformity

Manufacturer's catalogue - EN/DE Manufacturer's catalogue

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85369010

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No

Accessory

Mounting key M16 for cable connector, 02 1785 000

Order No.:

66P0013

Manufacturer SKU:

02 1785 000

Available: 38 pcs. Leadtime: 6 Weeks **

1.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale
