99 0996 102 05 | binder

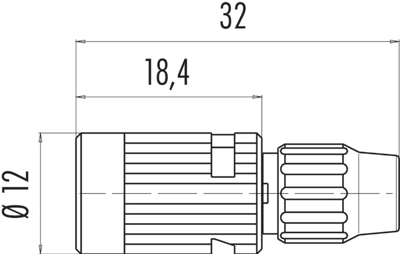

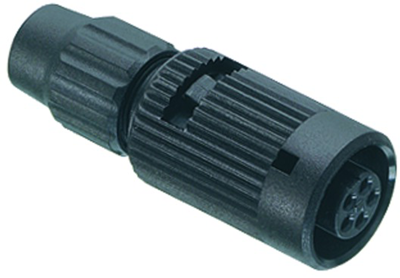

Jack, 5 pole, solder cup, bayonet locking, straight, 99 0996 102 05
Unit Price (€ / pc.)
13.2447 € *
Available: 150 pcs.
Leadtime: 3 Weeks **
Total Price:
13.24 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2447 €
10 pcs.
11.6620 €
50 pcs.
10.8647 €
150 pcs.
10.3887 €
500 pcs.
9.8532 €
*incl. VAT plus shipping costs
**Subject to prior sale
SubMiniature circular connector, type Binder 710.
With bayonet lock; Male contact: CuZn. Female contact: CuSn. Contact finish: gold-plated. Solder terminals: 5-pole max. 0.25 mm². Female contact carrier and receptacle housing: PA 66 to UL 94 V-0. Male contact carrier: PBT to UL 94 V-0. Cable housing: PA 12 to UL 94 HB. Rated voltage: 125 VAC. Test surge voltage: 1750 V. Insulation resistance: 10 Gohm. Degree of protection: IP 40. Operating temperatures: - 40 to +85 °C. Insertion/removal cycles: min. 500.
Female plugs, type 710.
Technical attributes (type, number of poles, rated current (+40 °C), cable outlet): 99-0996-102-05, 5-pole, 3.0 A, 4.0 to 5.0 mm
Technical specifications
| Version | jack | |
| Additional parts | equipped | |
| Shell Material | polyamide | |
| Cable diameter | 4 to 5 mm | |
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Cable cross-section | 0.25 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Type of locking | bayonet locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
