99 0773 001 08 | binder
Miniature connector Bajonett NCC, unshielded,0,25mm², AWG 24, male angled, 8 pole
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
18.7068 € *
Next delivery: 20 pcs. on 2026-07-09
Total Price:
18.71 € *
Price list
Quantity
Price per unit*
1 pcs.
18.7068 €
10 pcs.
17.0170 €
50 pcs.
14.9702 €
*incl. VAT plus shipping costs
Subject to prior sale

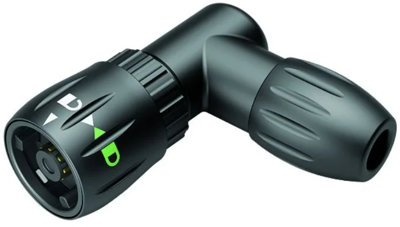

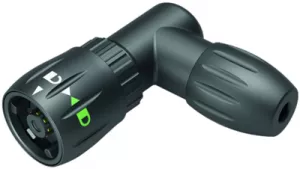

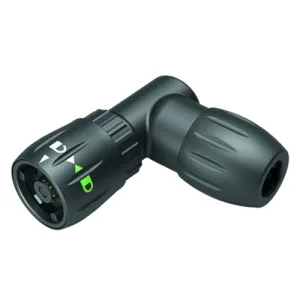

Male angled connector, 99 0773 001 08, binder

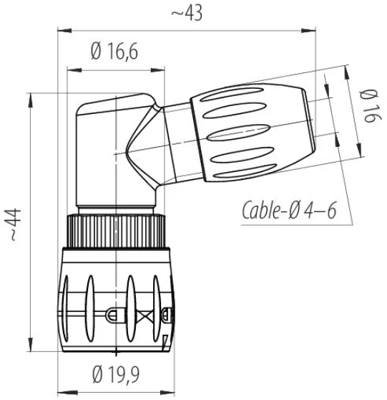

Bayonet Male angled connector, Contacts: 8, 4.0 - 6.0 mm, unshielded, solder, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | angle plug | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 8 pole | |
| Orientation | angled | |
| Contact connection | solder connection | |
| Type of locking | bayonet locking | |
| Cable diameter | 4 to 6 mm | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
