99 0712 00 05 | binder

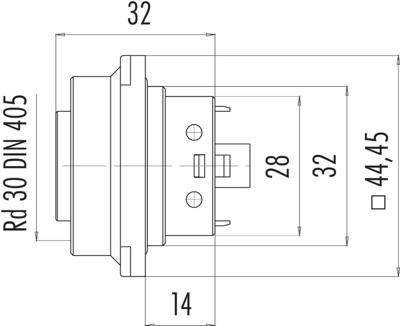

Panel socket, 4 pole + PE, screw connection, screw locking, straight, 99 0712 00 05
Connector for automation technology, type Binder 694.
With ground terminal and screw locking. Male and female cable connectors with cable bushing Pg 13.5. Splash proof, with VDE certification; Female contacts: copper tin. Male contacts: copper zinc. Contact surface: nickel-plated. Cable connection: screw terminals max. 2.5 mm². Contact carrier PA 66 to UL 94 V-0. Housing: straight/angled PA 66 to UL 94 V-0. Degree of protection in mated state (IEC 60529): IP 65. Cable outlet: 10 to 12 mm. Test surge voltage: 7300 V. Contact resistance: max. 8.0 mohm. Insulation resistance: min. 10 Gohm. Insertion/removal cycles: min. 500. Operating temperatures: - 40 to +100 °C.

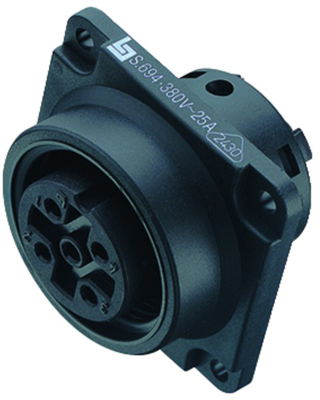

Female panel mount connector, type 694.
Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-0712-00-05, 4-pole, 400 V/20 A
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Pin number | 4 pole + PE | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Assembly | PCB mounting | |
| Contact connection | screw connection | |
| contact surface | silver-plated | |
| Version | panel socket | |
| Cable cross-section | 2.5 mm² | |
| Shell Material | PA |
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
