99 0606 72 03 | binder
Angle coupling, 3 pole, solder connection, bayonet locking, angled, 99 0606 72 03
Unit Price (€ / pc.)
18.0047 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
18.00 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0047 €
10 pcs.
16.9218 €
50 pcs.
15.9103 €
100 pcs.
14.9464 €
*incl. VAT plus shipping costs
**Subject to prior sale

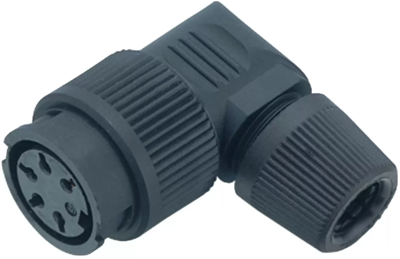

Female angled connector, 99 0606 72 03, binder
Bayonet Female angled connector, Contacts: 3 DIN, 6.0-8.0 mm, unshielded, solder, IP40.
Technical specifications
| Version | angle coupling | |
| Additional parts | equipped | |
| Shell Material | polyamide | |
| Cable diameter | 6 to 8 mm | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 3 pole | |
| Type of locking | bayonet locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
