99 0462 106 19 | binder

Angle coupling, 19 pole, solder connection, screw locking, angled, 99 0462 106 19

Order No.: 70P1614
EAN: 4099891704278
MPN:
99 0462 106 19
Series: 723
binder

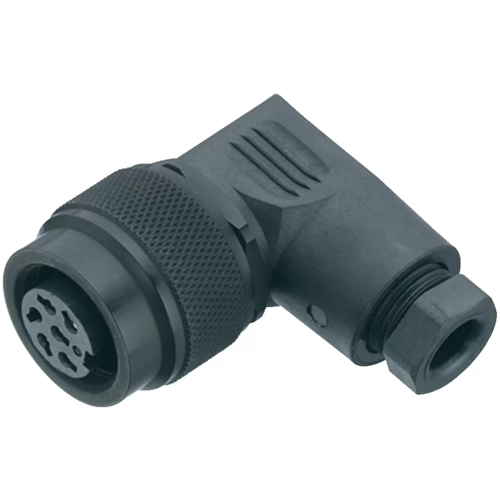

99 0462 106 19 binder Other Circular Connectors Image 1
99 0462 106 19 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
36.8305 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
36.83 € *
Price list
Quantity
Price per unit*
1 pcs.
36.8305 €
10 pcs.
34.6171 €
25 pcs.
32.1895 €
50 pcs.
29.9404 €
*incl. VAT plus shipping costs
**Subject to prior sale

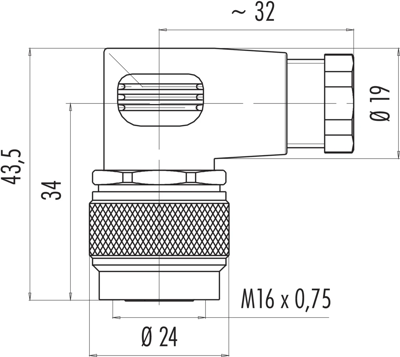

Female angled connector, 99 0462 106 19, binder

M16 IP67 Female angled connector, Contacts: 19, 4.0-6.0 mm, unshielded, solder, IP67.

Technical specifications
Version angle coupling
Additional parts equipped
Shell Material PA
Cable diameter 4 to 6 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.25 mm²
Assembly cable assembly
Orientation angled
Pin number 19 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
