99 0217 15 07 | binder
Plug, 6 pole + PE, screw connection, screw locking, straight, 99 0217 15 07
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
21.6699 € *
Available: 7 pcs.
Total Price:
21.67 € *
Price list
Quantity
Price per unit*
1 pcs.
21.6699 €
10 pcs.
19.0638 €
50 pcs.
17.7667 €
150 pcs.
16.9813 €
500 pcs.
16.1245 €
*incl. VAT plus shipping costs
Subject to prior sale

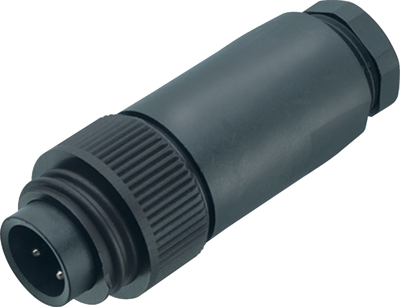

Male cable connector, 99-0217-15-07, Franz Binder
RD24 Male connector, poles 6+PE, 10.0-12.0 mm, unshielded, screw clamp, IP67, PG 13.5
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 1.5 mm² | |
| Pin number | 6 pole + PE | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Type of locking | screw locking | |
| Cable diameter | 10 to 12 mm | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Shell Material | PBT |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
