99 0164 12 19 | binder

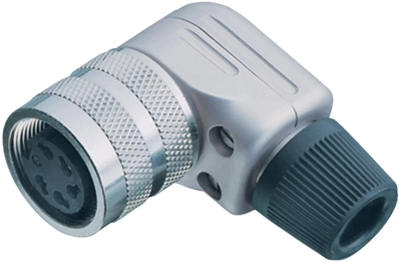

Angle coupling, 19 pole, solder connection, screw locking, angled, 99 0164 12 19

Order No.: 70P0822
EAN: 4099891699987
MPN:
99 0164 12 19
Series: 682
binder
default L
front L
Image may differ
Print
Key Specification:
Version angle coupling
Cable cross-section 0.25 mm²
Pin number 19 pole
Orientation angled
Contact connection solder connection
Show 12 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
27.7984 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
27.80 € *
Price list
Quantity
Price per unit*
1 pcs.
27.7984 €
10 pcs.
26.1324 €
25 pcs.
24.5497 €
50 pcs.
23.0860 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Accessory
Variations

Female angled connector, 99 0164 12 19, binder

M16 IP40 Female angled connector, Contacts: 19, 6.0-8.0 mm, shieldable, solder, IP40.
Technical specifications
Version angle coupling
Additional parts equipped
Shell Material zinc die casting
Cable diameter 6 to 8 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.25 mm²
Assembly cable assembly
Orientation angled
Pin number 19 pole
Type of locking screw locking
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Accessory
Mounting key M16 for cable connector, 02 1785 000
Image may differ

Mounting key M16 for cable connector, 02 1785 000

Order No.:

 66P0013

Manufacturer SKU:

 02 1785 000



Available: 38 pcs. Leadtime: 6 Weeks **
1.05 € per pc. *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
1.0472 €
50 pcs.
0.9282 €
250 pcs.
0.7973 €
1000 pcs.
0.7021 €
2500 pcs.
0.6426 €
Variations
Cable cross-section
contact surface
Pin number
Shell Material
Additional parts
Version
Type of locking
Cable diameter
Assembly
Orientation
Contact connection
