09 6520 100 12 | binder
Panel socket, 12 pole, crimp connection, bayonet locking, straight, 09 6520 100 12
Unit Price (€ / pc.)
18.3855 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
18.39 € *
Price list
Quantity
Price per unit*
1 pcs.
18.3855 €
10 pcs.
17.2907 €
50 pcs.
16.2554 €
100 pcs.
15.2796 €
*incl. VAT plus shipping costs
Subject to prior sale

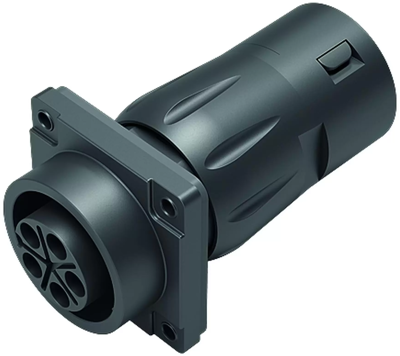

Female panel mount connector, 09 6520 100 12, binder
Bayonet HEC Female panel mount connector, Contacts: 12, unshielded, crimping, IP68/IP69K, UL, VDE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | panel socket | |
| Pin number | 12 pole | |
| Type of locking | bayonet locking | |
| Shell Material | PA | |
| Contact connection | crimp connection | |
| Orientation | straight | |
| Cable cross-section | 0.14-0.75 mm² | |
| Additional parts | unequipped | |
| Assembly | panel mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
