09 6504 200 08 | binder
Panel socket, 4 + 3 polig + PE, crimp connection, bayonet locking, straight, 09 6504 200 08
Unit Price (€ / pc.)
19.8016 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
19.80 € *
Price list
Quantity
Price per unit*
1 pcs.
19.8016 €
10 pcs.
18.6116 €
50 pcs.
17.5049 €
100 pcs.
16.4577 €
*incl. VAT plus shipping costs
**Subject to prior sale

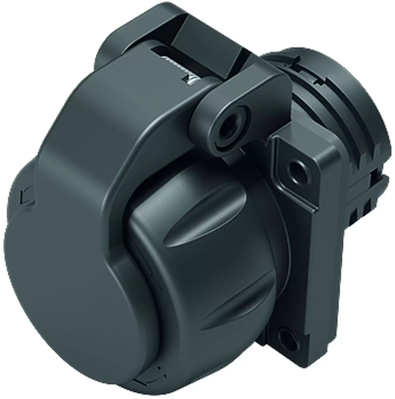

Female panel mount connector, 09 6504 200 08, binder
Bayonet HEC Female panel mount connector, Contacts: 4+3+PE, unshielded, crimping, IP68/IP69K, UL, VDE.
Technical specifications
| Version | panel socket | |
| Additional parts | unequipped | |
| Shell Material | polyamide | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.14-2.5 mm² | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 4 + 3 polig + PE | |
| Type of locking | bayonet locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
