09 6520 000 12 | binder

Panel socket, 12 pole, crimp connection, bayonet locking, straight, 09 6520 000 12

Order No.: 70P0920
EAN: 4099891700874
MPN:
09 6520 000 12
Series: 696

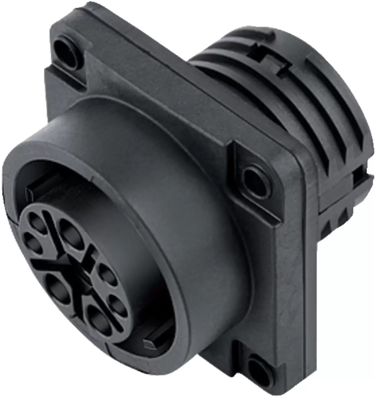

09 6520 000 12 binder Other Circular Connectors Image 1
09 6520 000 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.1491 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.15 € *
Price list
Quantity
Price per unit*
1 pcs.
14.1491 €
10 pcs.
13.1733 €
50 pcs.
12.2451 €
100 pcs.
11.3883 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09 6520 000 12, binder

Bayonet HEC Female panel mount connector, Contacts: 12, unshielded, crimping, IP68/IP69K, UL, VDE.

Technical specifications
Type of locking bayonet locking
Assembly panel mounting
Contact connection crimp connection
Pin number 12 pole
Version panel socket
Additional parts unequipped
Shell Material PA
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
