09 6492 000 05 | binder

Panel socket, 4 pole + PE, crimp connection, bayonet locking, straight, 09 6492 000 05

Order No.: 70P0917
EAN: 4099891700843
MPN:
09 6492 000 05
Series: 696

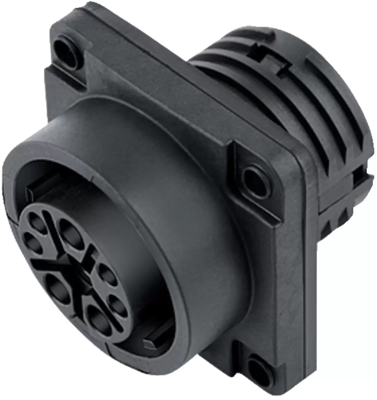

09 6492 000 05 binder Other Circular Connectors Image 1

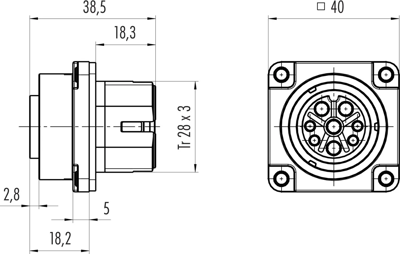

09 6492 000 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.1491 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
14.15 € *
Price list
Quantity
Price per unit*
1 pcs.
14.1491 €
10 pcs.
13.1733 €
50 pcs.
12.2451 €
100 pcs.
11.3883 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09 6492 000 05, binder

Bayonet HEC Female panel mount connector, Contacts: 4+PE, unshielded, crimping, IP68/IP69K, UL, VDE.

Technical specifications
Filter Property Value
Pin number 4 pole + PE
Shell Material PA
Cable cross-section 2.5-6.0 mm²
Version panel socket
Assembly panel mounting
Additional parts unequipped
Orientation straight
Type of locking bayonet locking
Contact connection crimp connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
