09 0571 92 08 | binder

Plug, 8 pole, solder connection, screw locking, straight, 09 0571 92 08

Order No.: 70P0732
EAN: 4099891699086
MPN:
09 0571 92 08
Series: 680
binder

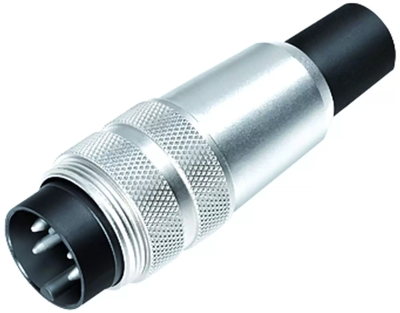

09 0571 92 08 binder Other Circular Connectors Image 1

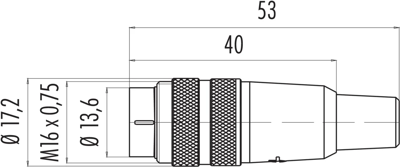

09 0571 92 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.1118 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.11 € *
Price list
Quantity
Price per unit*
1 pcs.
18.1118 €
10 pcs.
17.0289 €
50 pcs.
16.0055 €
100 pcs.
15.0535 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male cable connector, 09 0571 92 08, binder

M16 IP40 Male cable connector, Contacts: 8 DIN, 6.0-8.0 mm, unshielded, solder, IP40.

Technical specifications
Version plug
Additional parts equipped
Shell Material PA
Cable diameter 6 to 8 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 8 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
