Name: Panel plug, 16 pole, solder connection, screw locking, straight, 09 0339 80 16
Brand: binder
SKU: 70P0713
Price: 15.42 EUR
Availability: OutOfStock

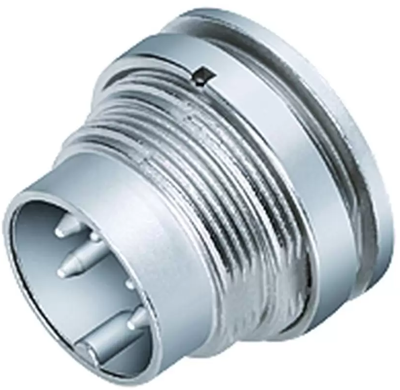

Panel plug, 16 pole, solder connection, screw locking, straight, 09 0339 80 16

Order No.: 70P0713

EAN: 4099891698935

MPN:

09 0339 80 16

Series: 680

Image may differ

Key Specification:

Version panel plug

Cable cross-section 0.25 mm²

Pin number 16 pole

Orientation straight

Contact connection solder connection

Show 13 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

15.4224 € *

Available: 0 pcs.

Leadtime: 2 Weeks **

Add to Cart

Total Price:

15.42 € *

Price list

Quantity

Price per unit*

1 pcs.

15.4224 €

10 pcs.

14.3514 €

50 pcs.

13.3399 €

100 pcs.

12.3998 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Male panel mount connector, 09 0339 80 16, binder

M16 IP40 Male panel mount connector, Contacts: 16, unshielded, solder, IP40, front fastened.
