09 0325 92 07 | binder
Plug, 7 pole, solder connection, screw locking, straight, 09 0325 92 07
Unit Price (€ / pc.)
18.0999 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
18.10 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0999 €
10 pcs.
16.8266 €
50 pcs.
15.6604 €
100 pcs.
14.5537 €
*incl. VAT plus shipping costs
Subject to prior sale

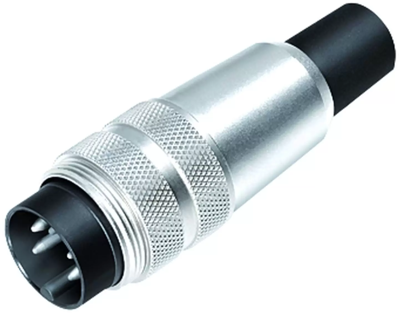

Male cable connector, 09 0325 92 07, binder
M16 IP40 Male cable connector, Contacts: 7, 6.0-8.0 mm, unshielded, solder, IP40.
Technical specifications
| Version | plug | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 7 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 6 to 8 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
