09 0314 09 05 | binder

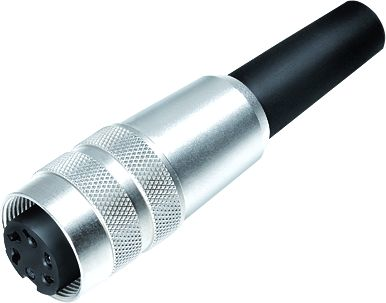

Jack, 5 pole, solder connection, screw locking, straight, 09 0314 09 05
Unit Price (€ / pc.)
14.2919 € *
Available: 9 pcs.
Total Price:
14.29 € *
Price list
Quantity
Price per unit*
1 pcs.
14.2919 €
10 pcs.
12.5902 €
50 pcs.
11.7334 €
150 pcs.
11.2098 €
500 pcs.
10.6505 €
*incl. VAT plus shipping costs
Subject to prior sale

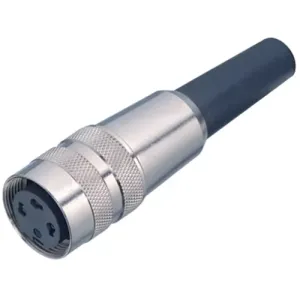

Female cable connector, 09-0314-09-05, Franz Binder
M16 IP40 Female connector, poles 5, 3.0-6.0 mm, unshielded, solder, IP40
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | jack | |
| contact surface | gold-plated | |
| Pin number | 5 pole | |
| Type of locking | screw locking | |
| Shell Material | PA | |
| Contact connection | solder connection | |
| Orientation | straight | |
| Cable cross-section | 0.75 mm² | |
| Cable diameter | 3 to 6 mm | |
| Assembly | cable assembly |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
