09 0313 09 05 | binder
Plug, 5 pole, solder connection, screw locking, straight, 09 0313 09 05
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
11.5192 € *
Available: 100 pcs.
Total Price:
11.52 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5192 €
10 pcs.
10.7100 €
50 pcs.
9.8532 €
100 pcs.
8.9726 €
*incl. VAT plus shipping costs
Subject to prior sale

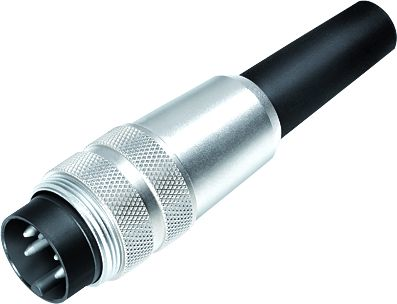

Male cable connector, 09-0313-09-05, Franz Binder
M16 IP40 Male connector, poles 5, 3.0-6.0 mm, unshielded, solder, IP40
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 5 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 3 to 6 mm | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
