09 0313 92 05 | binder

Plug, 5 pole, solder connection, screw locking, straight, 09 0313 92 05

Order No.: 70P0648
EAN: 4099891698409
MPN:
09 0313 92 05
Series: 680

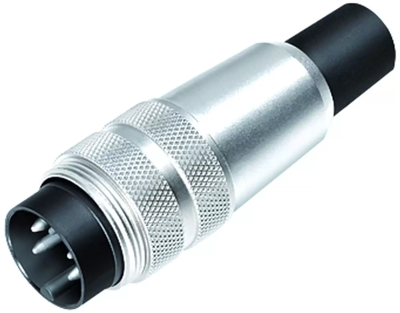

09 0313 92 05 binder Other Circular Connectors Image 1

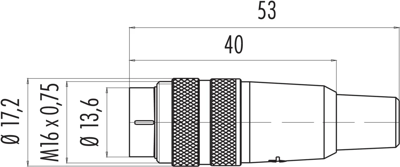

09 0313 92 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.5299 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.53 € *
Price list
Quantity
Price per unit*
1 pcs.
14.5299 €
10 pcs.
13.5184 €
50 pcs.
12.5664 €
100 pcs.
11.6977 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 09 0313 92 05, binder

M16 IP40 Male cable connector, Contacts: 5, 6.0-8.0 mm, unshielded, solder, IP40.

Technical specifications
Version plug
Cable cross-section 0.75 mm²
Pin number 5 pole
Orientation straight
Contact connection solder connection
Type of locking screw locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
