09 0301 09 02 | binder
Plug, 2 pole, solder connection, screw locking, straight, 09 0301 09 02
Unit Price (€ / pc.)
13.4827 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
13.48 € *
Price list
Quantity
Price per unit*
1 pcs.
13.4827 €
10 pcs.
12.5426 €
50 pcs.
11.6620 €
100 pcs.
10.4958 €
*incl. VAT plus shipping costs
**Subject to prior sale

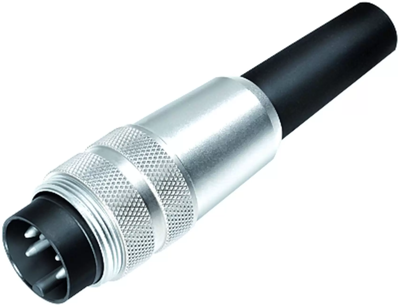

Male cable connector, 09 0301 09 02, binder
M16 IP40 Male cable connector, Contacts: 2, 3.0-6.0 mm, unshielded, solder, IP40.
Technical specifications
| Version | plug | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 2 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 3 to 6 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
