09 0197 80 24 | binder
Panel plug, 24 pole, solder connection, screw locking, straight, 09 0197 80 24
Unit Price (€ / pc.)
37.9015 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
37.90 € *
Price list
Quantity
Price per unit*
1 pcs.
37.9015 €
10 pcs.
35.6405 €
25 pcs.
33.1415 €
50 pcs.
30.8210 €
*incl. VAT plus shipping costs
Subject to prior sale

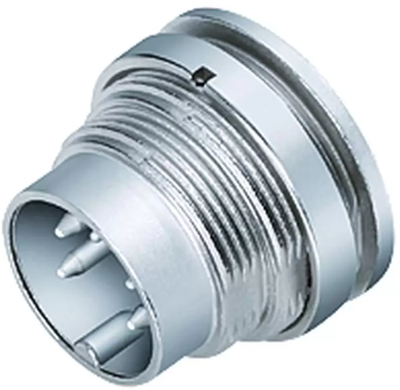

Male panel mount connector, 09 0197 80 24, binder
M16 IP40 Male panel mount connector, Contacts: 24, unshielded, solder, IP40, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Cable cross-section | 0.14 mm² | |
| Assembly | panel mounting | |
| contact surface | gold-plated | |
| Version | panel plug | |
| Contact connection | solder connection | |
| Pin number | 24 pole | |
| Shell Material | zinc die casting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
