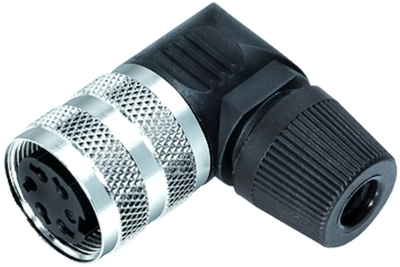

Name: Angle coupling, 19 pole, solder connection, screw locking, angled, 09 0164 70 19
Brand: binder
SKU: 70P0783
Price: 24.55 EUR
Availability: OutOfStock

Angle coupling, 19 pole, solder connection, screw locking, angled, 09 0164 70 19

Order No.: 70P0783

EAN: 4099891699598

MPN:

09 0164 70 19

Series: 682

Image may differ

Key Specification:

Version angle coupling

Cable cross-section 0.25 mm²

Pin number 19 pole

Orientation angled

Contact connection solder connection

Show 12 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

24.5497 € *

Available: 0 pcs.

Leadtime: 2 Weeks **

Add to Cart

Total Price:

24.55 € *

Price list

Quantity

Price per unit*

1 pcs.

24.5497 €

10 pcs.

23.0741 €

25 pcs.

21.6937 €

50 pcs.

20.3966 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Female angled connector, 09 0164 70 19, binder

M16 IP40 Female angled connector, Contacts: 19, 4.0-6.0 mm, unshielded, solder, IP40.
