09 0148 72 12 | binder

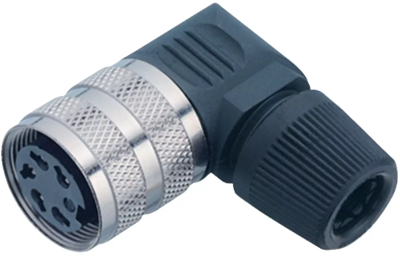

Name: Angle coupling, 12 pole, solder connection, screw locking, angled, 09 0148 72 12
Brand: binder
SKU: 67F5672
Price: 17.22 EUR
Availability: OutOfStock

Angle coupling, 12 pole, solder connection, screw locking, angled, 09 0148 72 12

Order No.: 67F5672

EAN: 4099891693299

MPN:

09 0148 72 12

Series: 682

Image may differ

Key Specification:

Version angle coupling

Cable cross-section 0.25 mm²

Pin number 12 pole

Orientation angled

Contact connection solder connection
